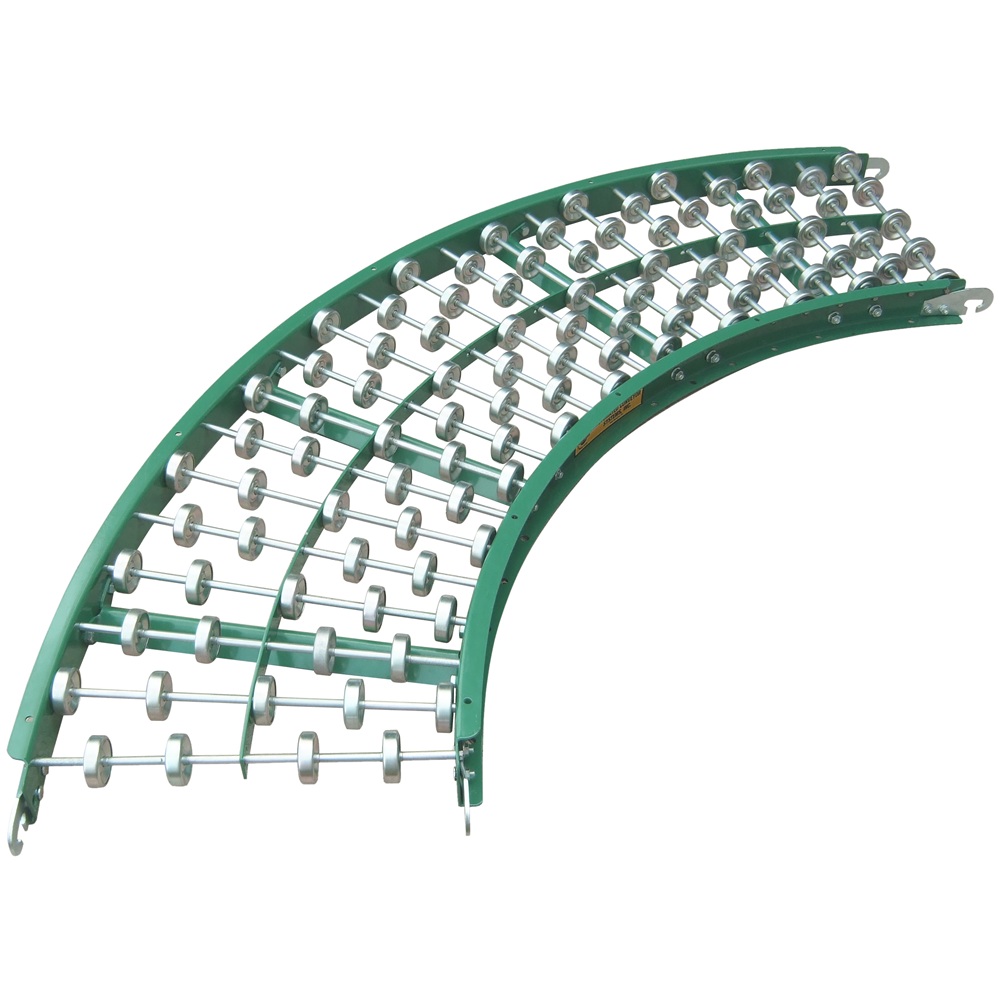

  • skatewheel_curve_90

ACSI Skatewheel Conveyor

Section of Skatewheel Conveyor. We offer several sizes online as described and listed below. There are additional options available for the skatewheel conveyor, such as: aluminum frames and wheels, various wheel patterns, additional frame color options, 15" width and 45 degree curve sections. These options may cost additional and are not available for purchase online. For pricing on conveyors with optional features or more information, please contact our Sales Department. Call toll free (800) 564-0152 or email info@amhboston.com

Lead Time: 5 Days
Vendor: ACSI

STANDARD SPECIFICATIONS

Frames - 2-1/2" deep x 1" flange x 12 gauge powder painted formed steel with bolt-in cross members.

Axle Supports - 12" to 18" wide frames have one 1/8" x 1"; 24" wide frames have two 1/8" x 1"

Wheels - zinc plated steel, 1-15/16" diameter x 5/8" face with a steel hardened raceway and a 13/16" wide cone. Each wheel contains (7) 1/4" hardened and ground steel balls. The lightly oiled baffled construction is designed to keep dirt out.

Cross Braces - 5 foot long sections have (2) bolted cross members; 10 foot long sections have (3) bolted cross members.

Axles - All axles are 1/4" diameter cold drawn steel, set on 3" centers and secured with a 1/4" - 20 stop nut.

Wheel Capacity - Steel, 50 pounds per wheel with 380 pounds maximum distributed live load over 10 foot length; 1,350 pounds maximum distributed live load over 5 foot length

Couplings - Each 5 and 10 foot section is equipped with a hook and rod connector. The slotted hook permits minor lateral movement. No tools are necessary for assembly, just hook together.

Gravity Install Manual

SKU
Description
Item Price
Qty.
12G-10-25-5
12"w x 5'L
$107.00
Qty:
12G-10-25-10
12"w x 10'L
$207.00
Qty:
18G-16-25-5
18"w x 5'L
$149.00
Qty:
18G-16-25-10
18"w x 10'L
$282.00
Qty:
24G-20-25-10
24"w x 10'L
$344.00
Qty:
24G-20-25-5
24"w x 5'L
$181.00
Qty:
12G90-25-90
12"w x 90 degrees
$186.00
Qty:
18G90-25-90
18"w x 90 degrees
$228.00
Qty:
24G90-25-90
24"w x 90 degrees
$356.00
Qty:
