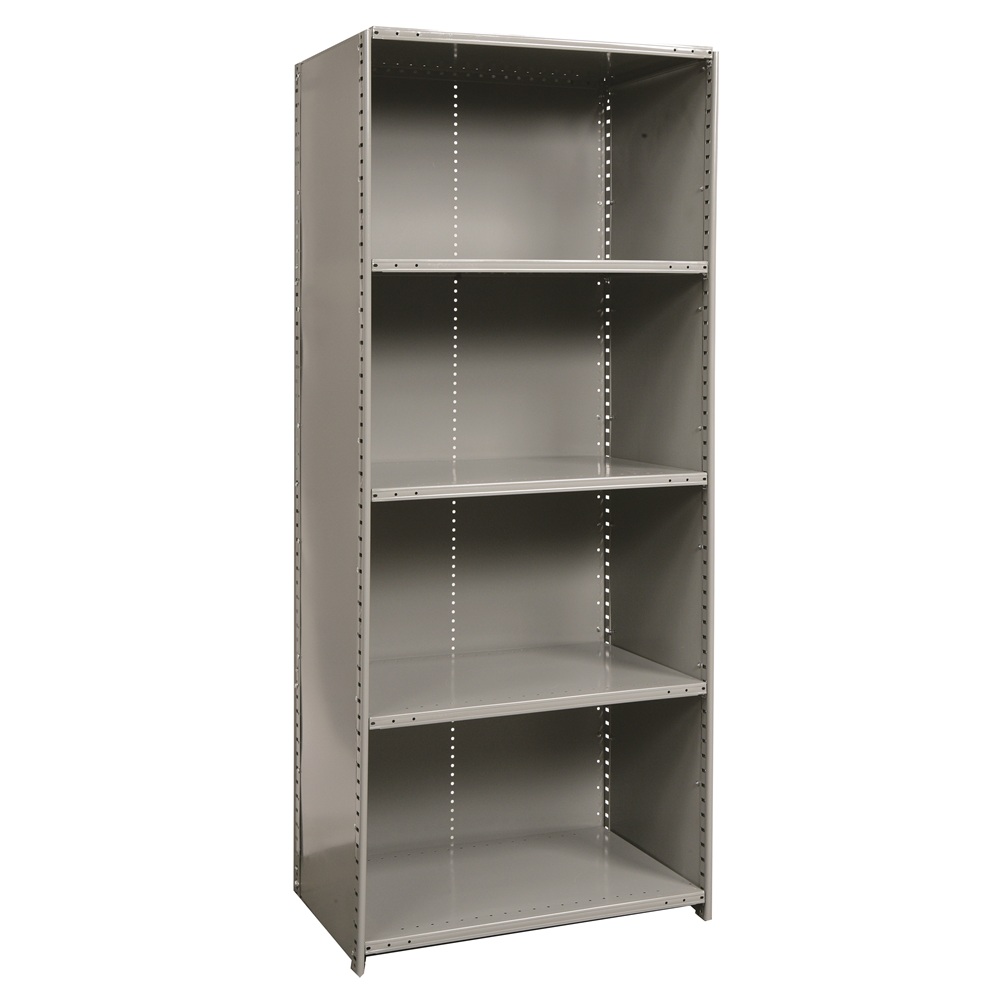

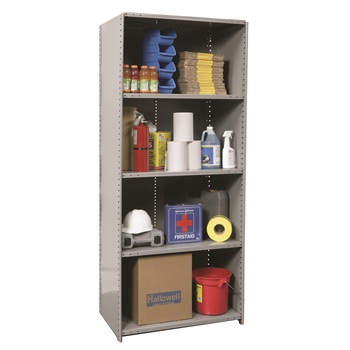

Closed Shelving Starter Unit - Medium Duty - 5 Shelf
Closed shelving units are used for applications where stored materials need additional protection or containment. Designed to allow for fast and easy assembly.
These units can be customized at an additional cost, not for purchase online. Contact our Sales Department for details about options, such as, additional color options, shelf dividers, base strips and more. Call toll free (800) 564-0152 or email info@amhboston.com
Note: Shelving units ship knocked down. Assembly required.
Shelf weight capacities shown below are rated with evenly distributed static loads.
Lead Time: 5 Days
Vendor: Hallowell/List Industries
STANDARD SPECIFICATIONS
Starter Unit Includes - (2) beaded front posts, (2)
angle back posts, (1) set of back panels, (2) sets of side panels, and
shelves with shelf clips applicable to unit ordered.
Construction - Steel. Clip Type.
Beaded Front Posts - True flush construction. Slotted on 1-1/2" centers to permit easy shelf adjustment.
Angle Back Posts - Angles for single or end units. Slotted on 1-1/2" centers to permit easy shelf adjustment.
Back Panels - Two piece sections punched on 1" centers at vertical edges and center for mounting on back of posts and shelves in models up to 48" wide.
Side Panels - Two piece panels are bolted to standard Beaded, Angle and T Posts.
Shelves - (5) Shelves per unit. Roll formed rectangular tubular shaped front and rear edges with return flanges welded on 3" centers to underside of shelf. Sides are triple flanged. All four corners are lapped and welded. Top pierced to accept dividers.
Finish - Hallowell Gray
Capacity - 500 Lbs. capacity per shelf on 36"w units
375 Lbs. capacity per shelf on 48"w x 12"d & 18"d units
350 Lbs. capacity per shelf on 48"w x 24"d units
* Shelf capacity based on factor of 1.65
