Column Sentry

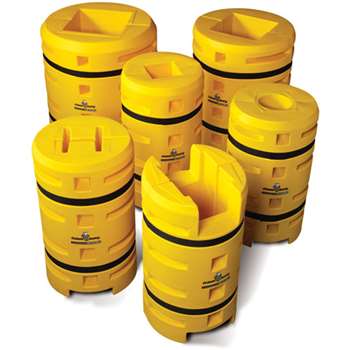

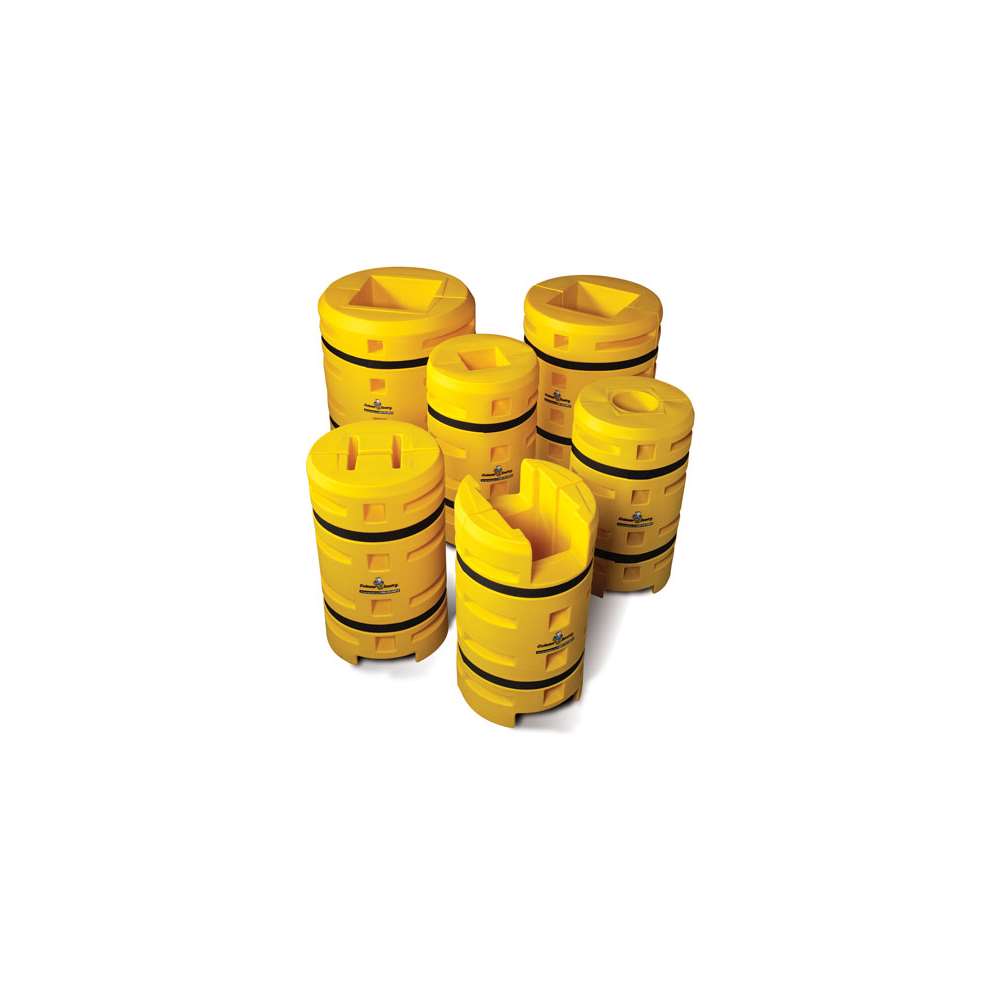

Column Sentry column protectors save interior building columns by surrounding them with a cushion of air. This protector is very easy to install, without using any tools, and is extremely effective at column damage prevention. Available in a number of sizes to fit most every column.

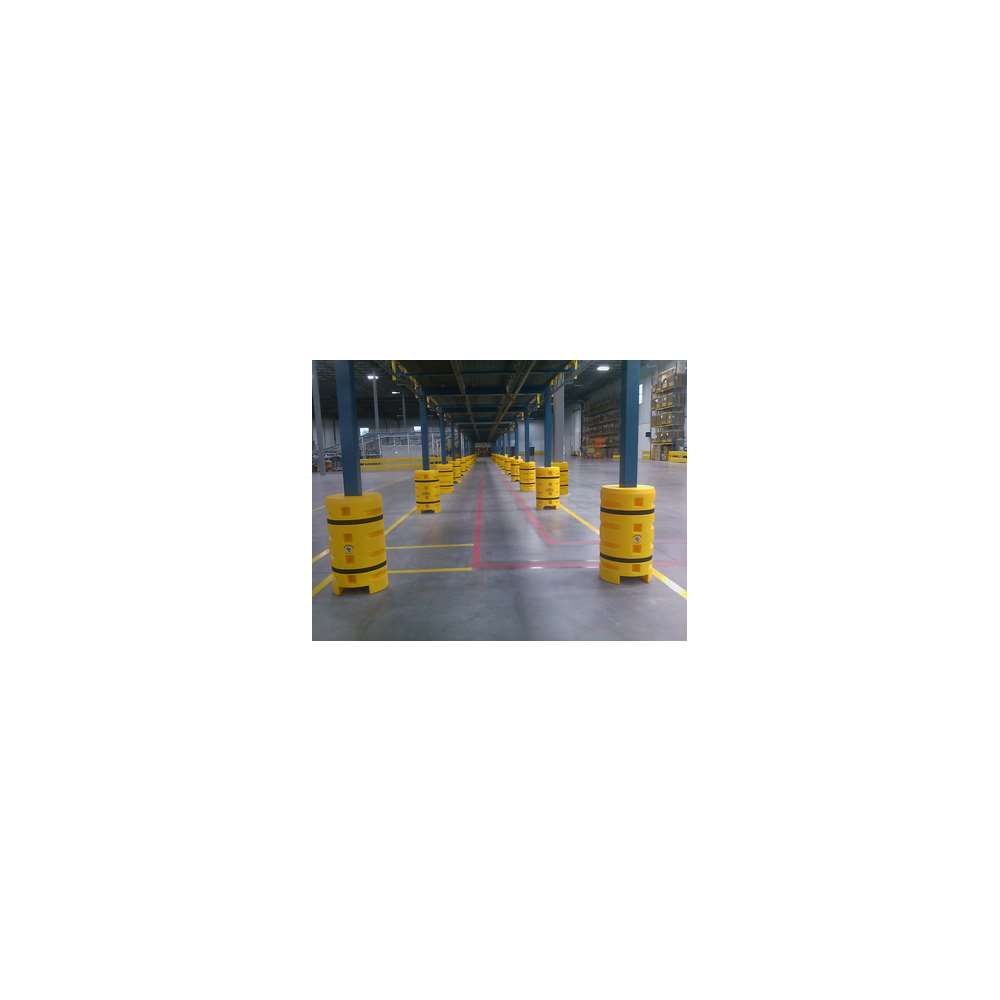

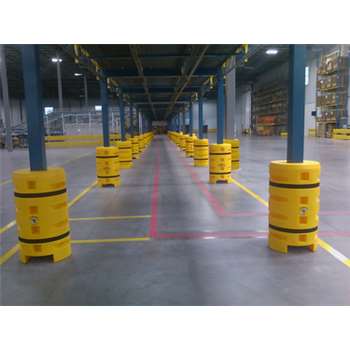

This column protector is highly visible in its standard safety yellow color, preventing forklift collisions. When hit, Column Sentry flexes, protecting the column, the forklift, and the forklift operator. The protector is molded of low-density polyethylene, making it tough while keeping it maintenance free.
Column Sentry's patented air-chamber makes it unique: Sentry's air-vent system provides the best protection available for a column protection device. This unique system allows air to escape during impact, allowing the column protector to absorb impact without splitting the sides.
Column Sentry FE is a special version of the Column Sentry product outfitted with a cutout designed to allow protection on a column with a Fire Extinguisher present. This cutout is 10"w x 8"d, resulting in a height of 34" at the cutout. This cutout solution also works well where any types of item, such as electrical boxes or outlets, are mounted to the face of the column.
The Column Sentry FE product is available in both the 8"x8" and the 12"x12" size. The product is installed in the same manner as the standard Column Sentry products. The cutout within the low-density polyethylene column padding does not affect the location or the function of the hook & loop straps.
SHIPS DIRECT FROM MANUFACTURER - F.O.B. ASHLAND, OH
Lead Time: 10 Days
Vendor: Sentry Protection Products
STANDARD SPECIFICATIONS
Construction - Linear low-density polyethylene at 0.25" thickness. Includes (1) set of nylon straps.
Dimension (All Sizes) - 42" Tall. The size of the column will dictate the size of the Column Sentry. See chart below. If covering an "I-beam" or "H-shape" column, make sure that the correct "web" and "flange"measurements before ordering.
Finish - Yellow
|
Small
|
 |
 |
|
|
CS1442-4S
Designed to fit around square, round or H-columns up to 4" x 4" in size. With an outside diameter of 14".
|
CS1442-6S
Designed to fit around square, round or H-columns up to 6" x 6" in size. With an outside diameter of 14".
|
|
| Medium |
 |
 |
 |
|
CS2442-6S
Designed to fit around square, round or H-columns up to 6" x 6" in size. With an outside diameter of 24".
|
CS2442-8x10H
Designed to fit around columns with an 8" web and flanges up to 10". With an outside diameter of 24".
|
CS2442-8S
Designed to fit around square, round or H-columns up to 8" x 8" in size. With an outside diameter of 24".
|
 |
 |
 |
|
CS2442-9R
Designed to fit around pipe columns up to 9" in diameter or 28.25" circumference. With an outside diameter of 24".
|
CS2442-10x10H
Designed to fit around H-columns with 10" web and flanges up to 10". With an outside diameter of 24".
|
CS2442-10S
Designed to fit around square, round or H-columns up to 10" x 10" in size. With an outside diameter of 24".
|
 |
|
|
|
CS2442-12S
Designed to fit around square, round or H-columns up to 12" x 12" in size. With an outside diameter of 24".
|
|
|
| Large |
 |
 |
|
|

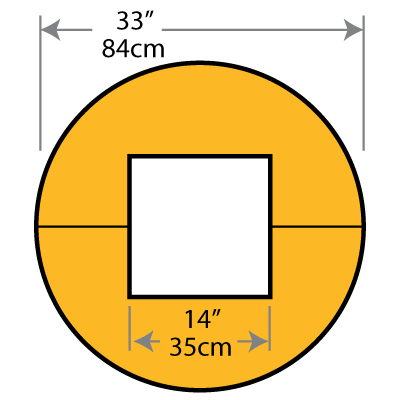

CS3342-14S
Designed to fit around square, round or H-columns up to 14" x 14" in size. With an outside diameter of 33".
|
CS3342-16S
Designed to fit around square, round or H-columns up to 16" x 16" in size. With an outside diameter of 33".
|
|
Extra Large
|
 |
 |
 |
|
CS3842-18S
Designed to fit around square, round or H-columns up to 18" x 18" in size. With an outside diameter of 38".
|
CS3842-20S
Designed to fit around square, round or H-columns up to 20" x 20" in size. With an outside diameter of 38".
|
CS3842-12x24S
Designed to fit around square, round or H-columns up to 12.5" x 24.5" diameter. With an outside diameter of 38".
|
Extra Extra Large
|
 |
|
|
|

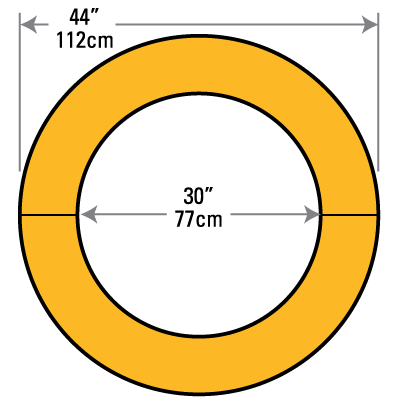

CS4442-30R
Designed to fit round columns up to 30" in diameter. With an outside diameter of 44".
|
|
|
