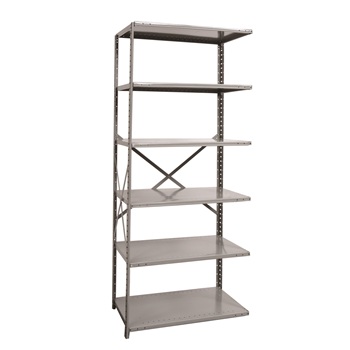

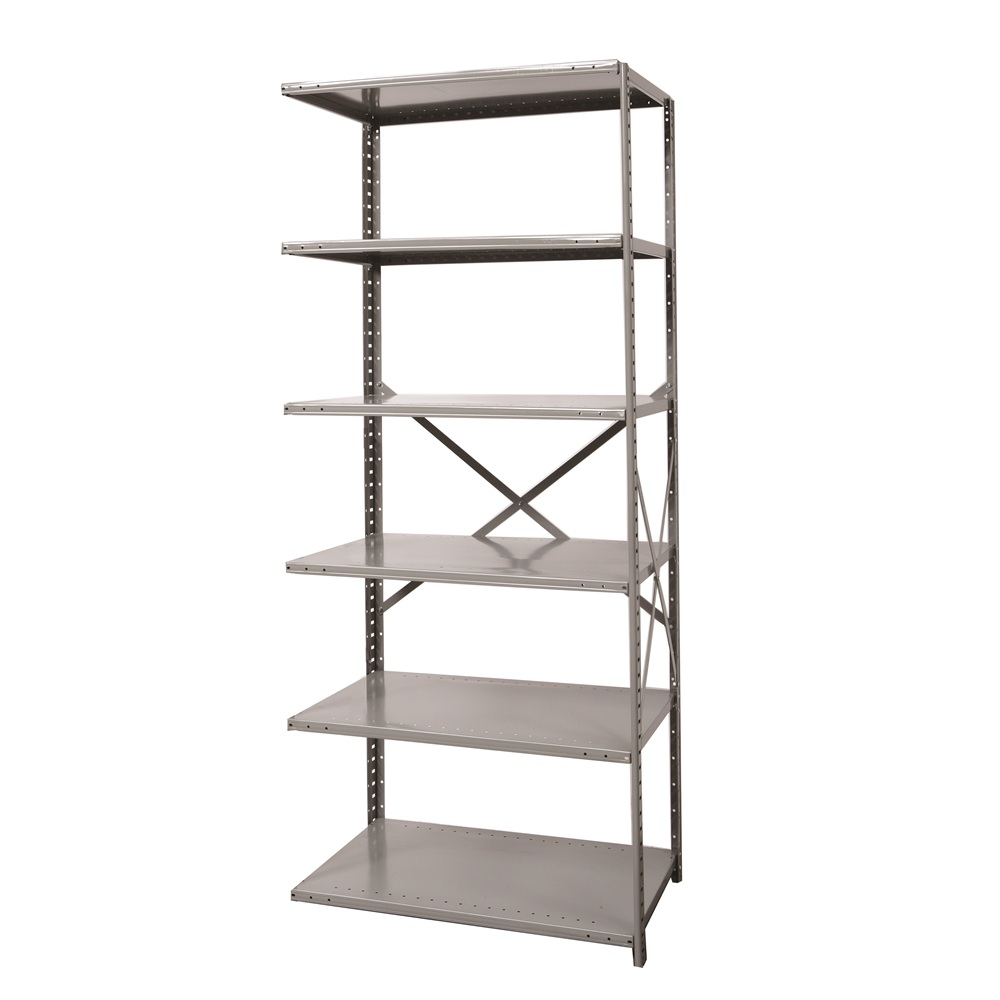

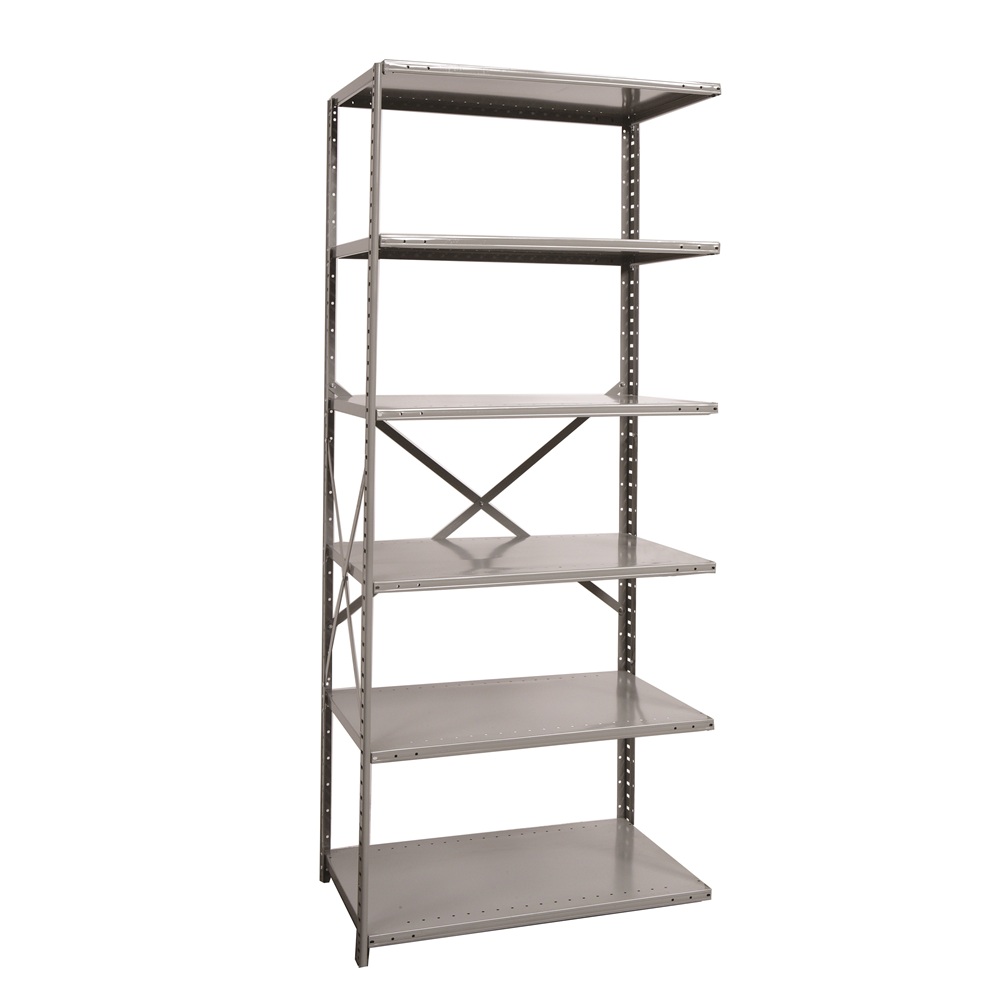

Open Shelving Add-on Unit - Medium Duty - 6 Shelf
Open shelving units allow light penetration and air flow around store products. Designed to allow for fast and easy assembly.
These units can be customized at an additional cost, not for purchase online. Contact our Sales Department for details about options, such as, additional color options, shelf dividers, base strips and more. Call toll free (800) 564-0152 or email info@amhboston.com
Note: Shelving units ship knocked down. Assembly required.
Shelf weight capacities shown below are rated with evenly distributed static loads.
Lead Time: 5 Days
Vendor: Hallowell/List Industries
STANDARD SPECIFICATIONS
Add-on Unit Includes - (1) beaded front posts, (2) angle back posts, (1) pair of back braces, (1) pair of side braces, and shelves with shelf clips applicable to unit ordered.
Construction - Steel. Clip Type.
Beaded Front Posts - True flush construction. Slotted on 1-1/2" centers to permit easy shelf adjustment.
Angle Back Posts - Angles for single or end units. Slotted on 1-1/2" centers to permit easy shelf adjustment.
Back Braces -1" x 11 gauge steel strip with safety edges. One pair of braces are bolted together at center to form an "X". Ends are rounded and pierced for mounting to rear posts.
Side Braces - 1" x 11 gauge steel strip with safety edges. One pair of braces are bolted together at the center to form an "X". Ends are rounded and pierced for attaching to front and rear posts in the side position.
Shelves - (6) Shelves per unit. Roll formed rectangular tubular shaped front and rear edges with return flanges welded on 3" centers to underside of shelf. Sides are triple flanged. All four corners are lapped and welded. Top pierced to accept dividers.
Finish - Hallowell Gray
Capacity - 500 Lbs. capacity per shelf on 36"w units
375 Lbs. capacity per shelf on 48"w x 12"d & 18"d units
350 Lbs. capacity per shelf on 48"w x 24"d units
* Shelf capacity based on factor of 1.65
