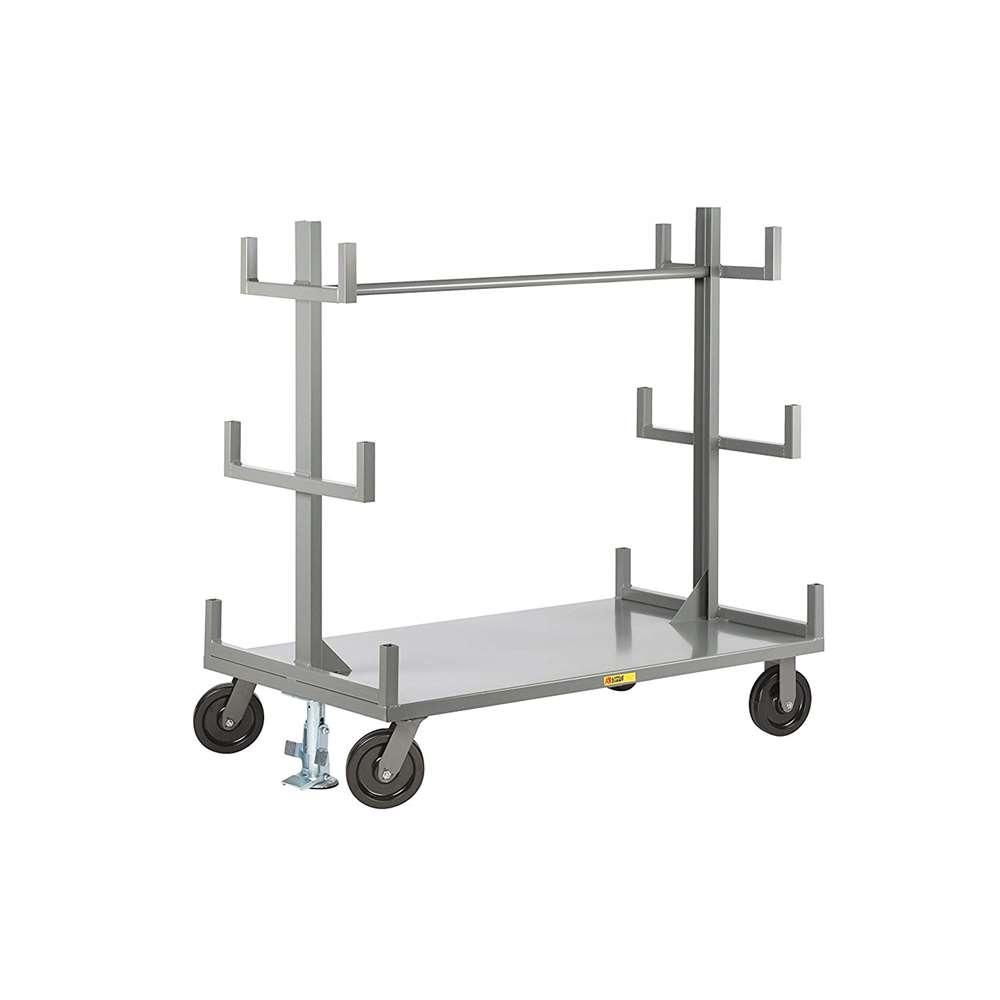

Portable Bar & Pipe Truck with Floor Lock

Transporter for pipes and bars. Three levels of horizontal storage.

Contact our Sales Department for questions. Call toll free (800) 564-0152 or email info@amhboston.com

Lead Time: 7 Weeks
Vendor: Little Giant

STANDARD SPECIFICATIONS

Construction - Rugged, all-welded construction with 3 load levels. Structural channel uprights with 1-1/2" square tube arms with 4-1/2" high stops on ends for load retention. 12 Gauge steel lower deck stores and transports smaller parts, packages, etc.

Usable Arm Spacing (Horizontal) Each Side - Top 7-1/2"; Middle 11"; Bottom 15"

Casters - 8" x 2" Phenolic wheels. (2) Rigid, (2) Swivel with Floor Lock.

Platform Height - 11"

Height - 58" OAH on all sizes.

Capacity - 3,600 Lbs overall, 2,000 lbs per level evenly distributed.

Finish - Powder coated gray.
