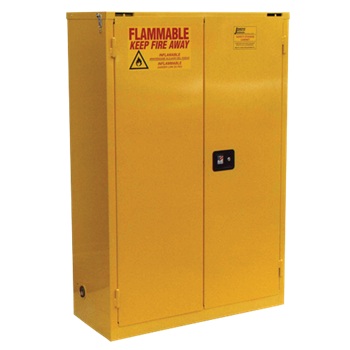

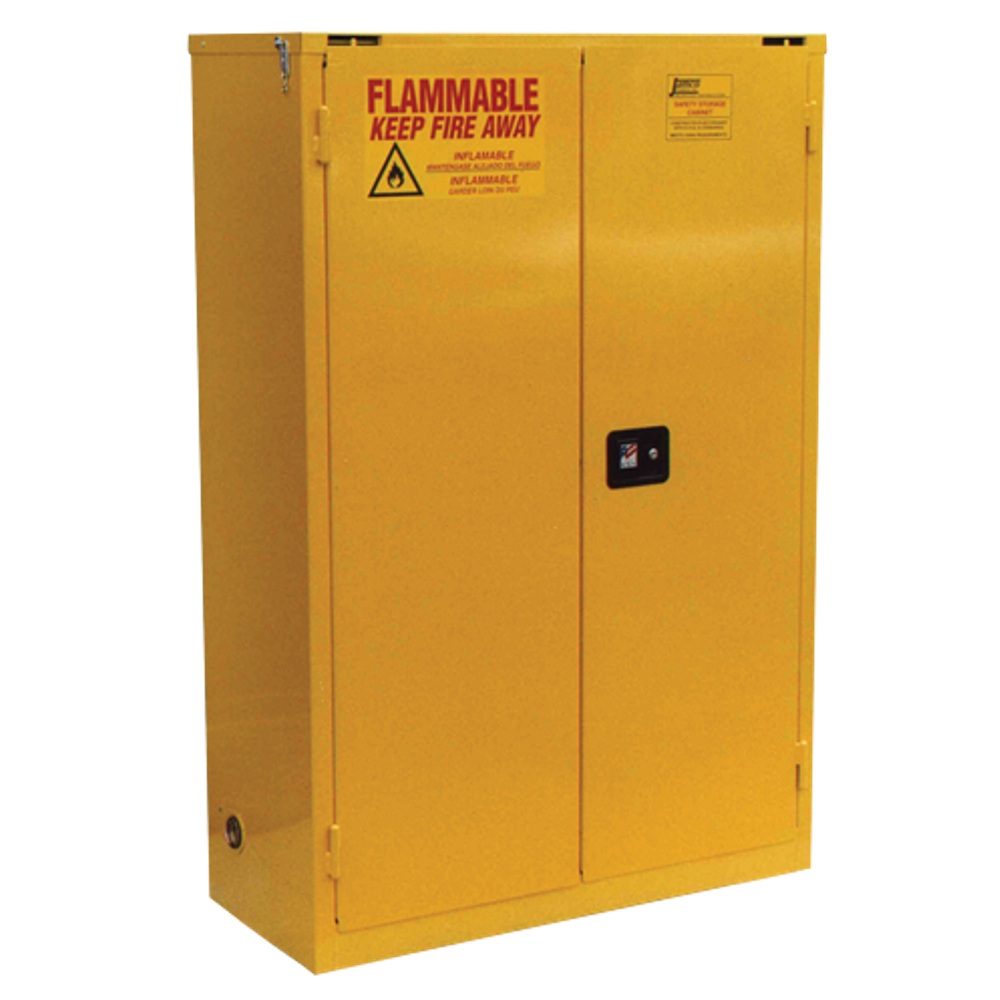

Standard 2-Door self close doors (shut, index, and latch automatically as fusible link melts under fire conditions at 165 degrees) with double wall cabinets to contain flammable liquids in protected storage. Concealed self closing mechanism. Optional finish colors for laboratory setting and hazardous materials at an additional cost, contact our Sales Department for more information. Meets OSHA, and NFPA code 30 & UFC 79 standard. All sizes are FM Approved.
Yellow = Aerosols, Gasoline and Flammable Liquids
Chemical Storage Maximum - Class I & II - 60 gallons, Class III - 120 gallons.
To comply with NFPA 1 fire code, the self-closing cabinet is required in the following states: AK, CA, HI, ID, MT, NC, NV, OR, UT, and WA.
STANDARD SPECIFICATIONS
Construction - All welded double wall 18 gauge with 1-1/2" insulating air space. 2" Leakproof sill to contain leaks.
Handle - Lockable flush mounted handle (gripper pad) with 2 keys.
Doors - Doors have 3 point locking system and radius edges. Doors are double walled, 14 gauge outside & 18 gauge inside. 4" Heavy duty welded hinges with brass pins.
Ventilation - Twin 2" flame arrester vents.
Feet - Adjustable leveling feet and grounding connector.
Finish - Powder coated yellow finish.
Safety Signage - Large red letters.

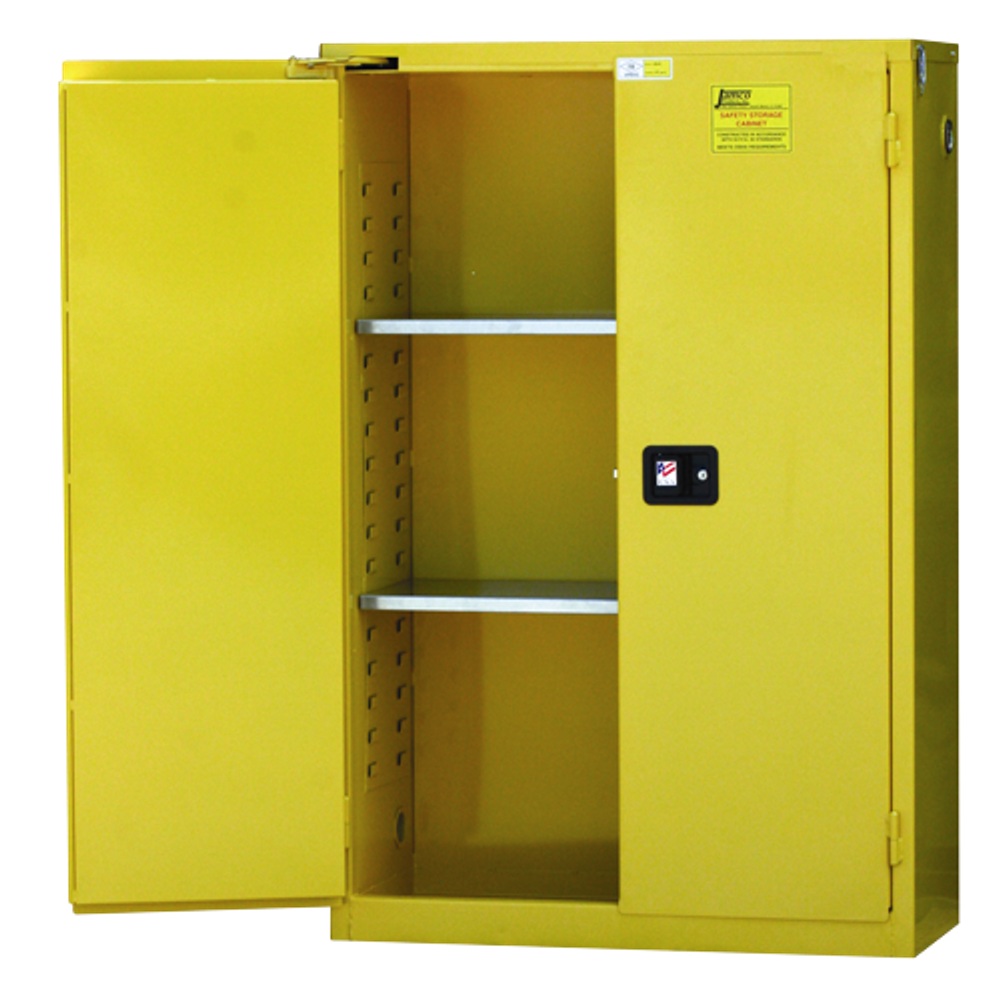

Shelves - Galvanized steel shelves adjust on 3" centers.
SHIPS DIRECT FROM MANUFACTURER - F.O.B. S. Beloit, IL
