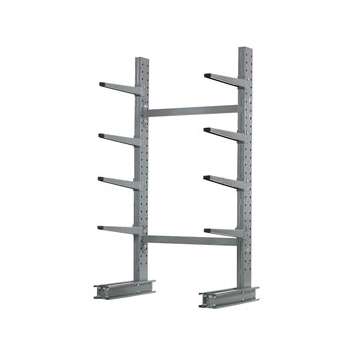

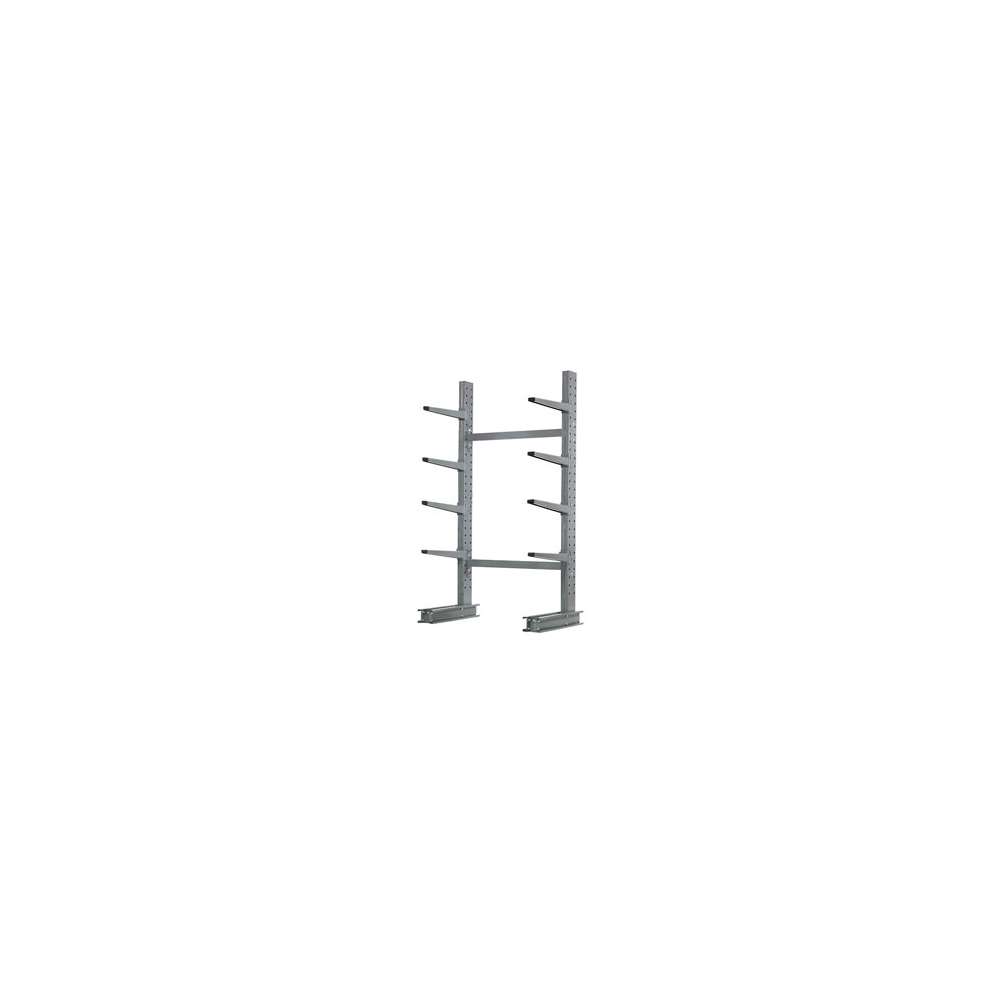

    SM-8 Series 1000 Medium Duty Cantilever Rack Starter Unit

SM08 - Series 1000 Medium Duty Cantilever Rack Single Sided Starter Unit


Medium Duty, 48"w x 33"d x 8'h, 5,300 Lbs Capacity


Starter Unit Includes - (2) Single Sided Uprights, Straight Arms and (1) Brace Set.

Uprights - (2) Single sided upright 8'h x 33" Base, 5,300 Lbs Capacity

Arms - (8) Straight Arms 24"L, 600 Lbs Capacity

Arms are completely adjustable on 3" centers up and down the full length of the uprights. Straight Arms have a minimum pitch of 3/8" per foot to compensate for deflection Arm capacities are based on an evenly distributed load. *Note in comment section at checkout if you would like to add Lips to the Straight Arms. Lips are not intended to bear any portion of the load.

Brace Sets - (1) 47"L, Set of 2.

Length of braces is measured from center of upright to center of upright.

Finish - Gray


Lead Time: 2 Weeks
Vendor: MECO
