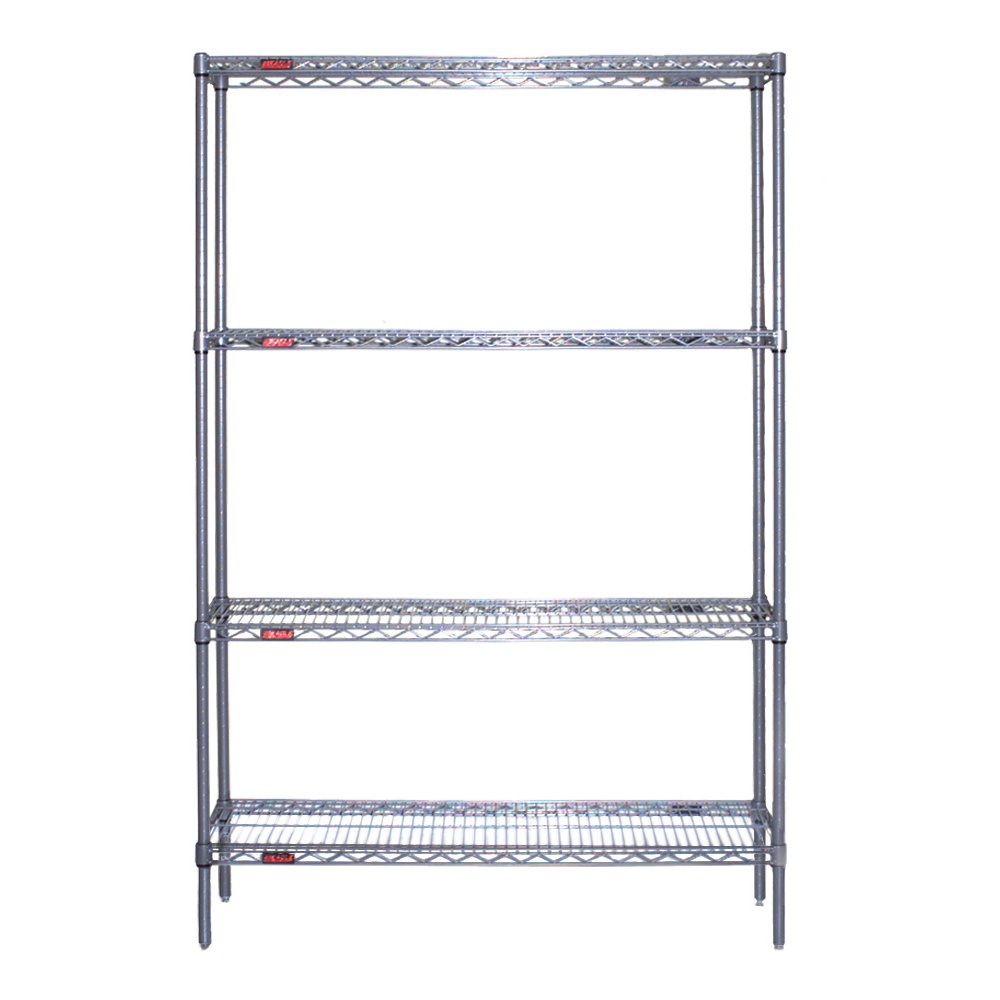

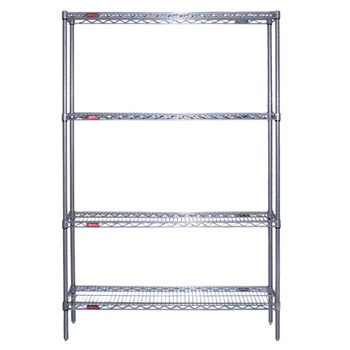

Stationary Wire Shelving Starter Unit - Model S4-63 Valu-Master
The popular wire shelving system is ideal for any dry storage application. Most desired shelving solution due to its quick and easy assembly without tools.
Patented QuadTruss® design wire shelves, with numerically calibrated grooved posts in 1" increments, leveling feet, and tapered split sleeves combine to make shelving assembly a simple two step process: (1) snap the split sleeves onto a post over the number of your choice; and (2) slide a shelf collar over the split sleeves. A positive lock between shelf and post is created without the use of any tools.
Open wire construction promotes higher visibility and allows light to pass through the shelves. The design also permits greater air circulation which in turn reduces moisture and dust build-up, and increases the effectiveness of fire-suppression systems.
There is a large array of accessories available for this type of shelving. For more information, additional needs or assistance with your order, please contact our Sales Department. Call toll free (800) 564-0152 or email info@amhboston.com
Note: Shelving units ship knocked down. Assembly required.
Shelf weight capacities shown below are rated with evenly distributed static loads.
Lead Time: 5 Days
Vendor: Eagle Group
STANDARD SPECIFICATIONS
Starter Unit Includes - (4) stationary posts with leveling feet, (4) wire shelves and (16) shelf clips.
Construction - Steel. Open wire.
Posts - Numbered in 1" increments with plastic top cap and leveling bolt foot. 63"h
Shelves - Patented QuadTruss® design makes shelves up to 25% stronger and provides a retaining ledge for increased storage stability and product retention.
Split Sleeves - Tapered split sleeves of high temperature resistant ABS plastic create a positive lock that becomes stronger as the load increases. (4) provided for each shelf.
Finish - VALU-MASTER® Gray Epoxy - NSF-listed for wet or dry storage environments. Finish is a phosphate conversion coating followed by masterseal sealer and metallic gray epoxy coating. 5-Year Limited Warranty
Capacity - 800 Lbs. capacity per shelf up to 48"w.
600 Lbs. capacity per shelf on 54"-74"w.
* Stationary shelving units should not exceed 2,400 Lbs per set of (4) posts.
