Steel Guard Lift-Out Guard Rail
Steel Guard Lift-out/drop-in guard rail systems provide protection for your equipment, while still allowing easy access when needed. An ideal solution for access to machine controls panels, electrical panels or maintenance tasks.
Protect these valuable areas in your facility with lift-out guard rail:
STANDARD SPECIFICATIONS
Construction - 11 Gauge Steel, 3 Ribs
Dimensions - 14-1/2" high x 2-1/2" deep
Posts - 4" Square, 1/4" Wall, on a 10" Square Base Plate, Includes Cap

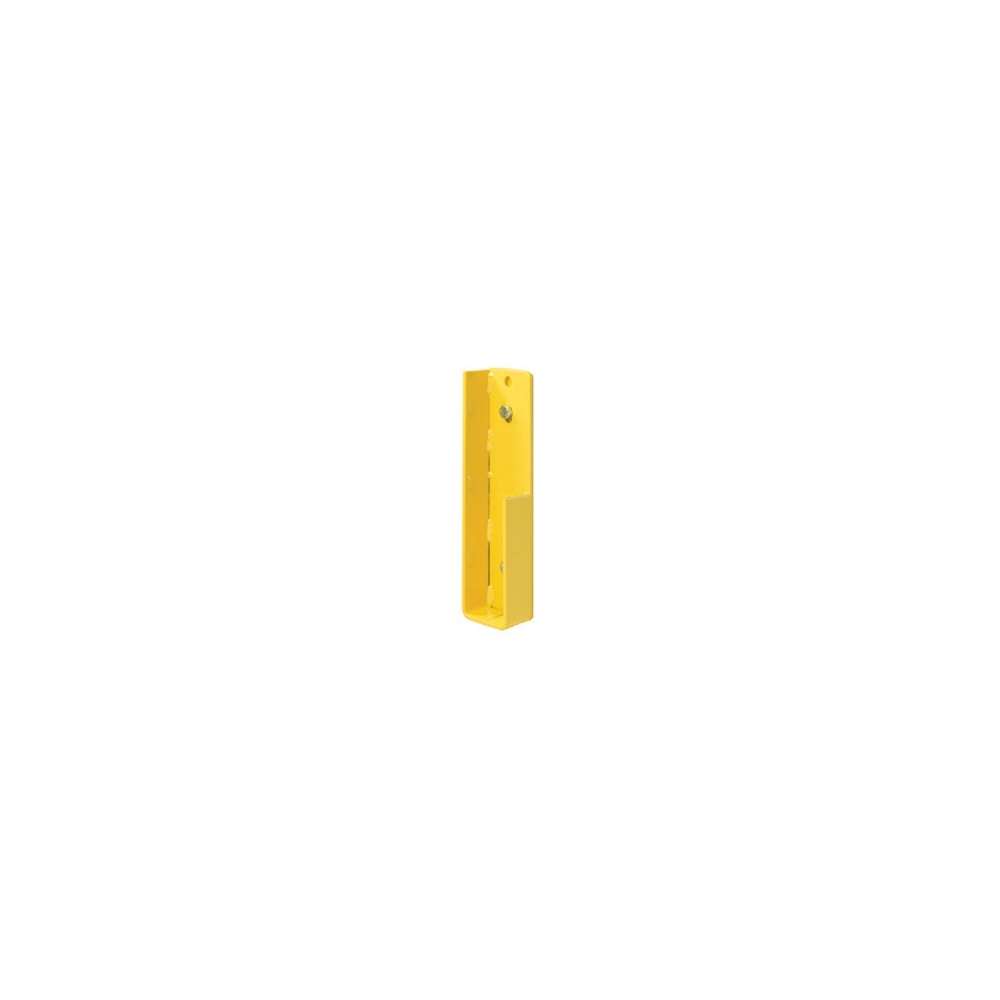

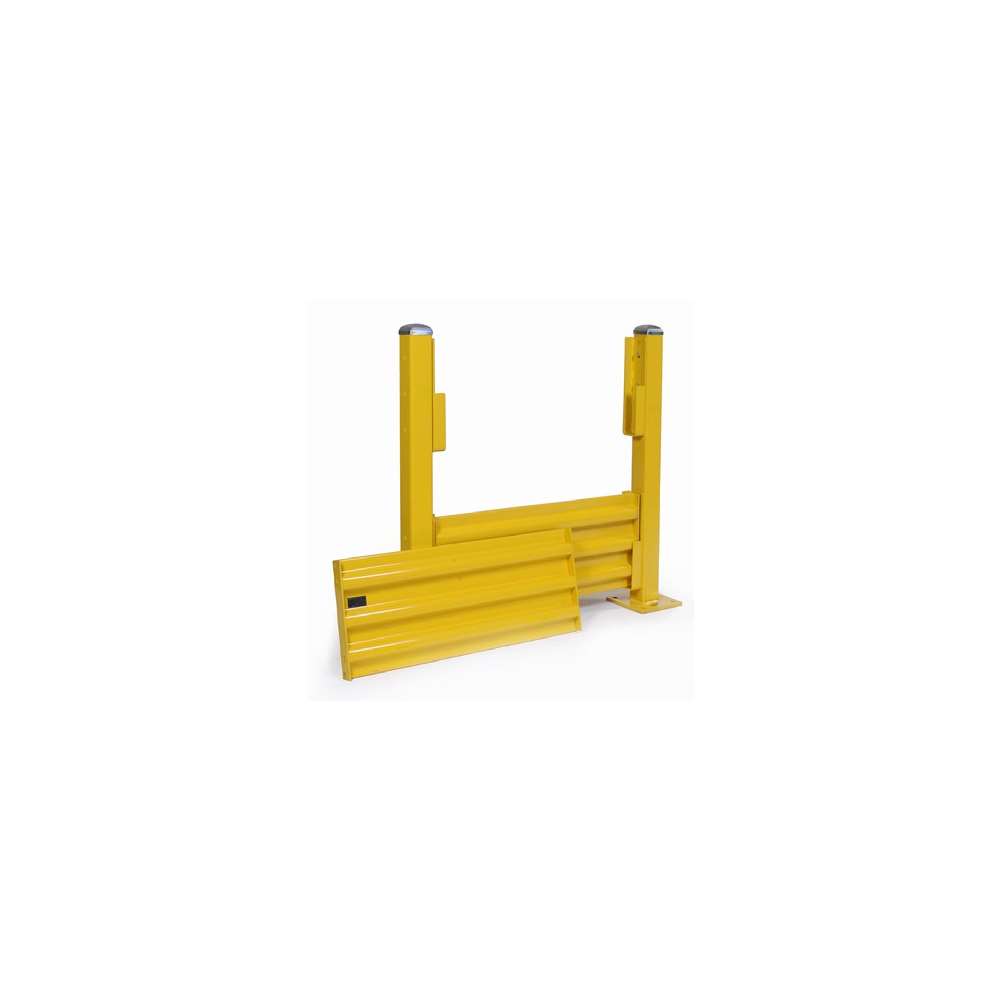

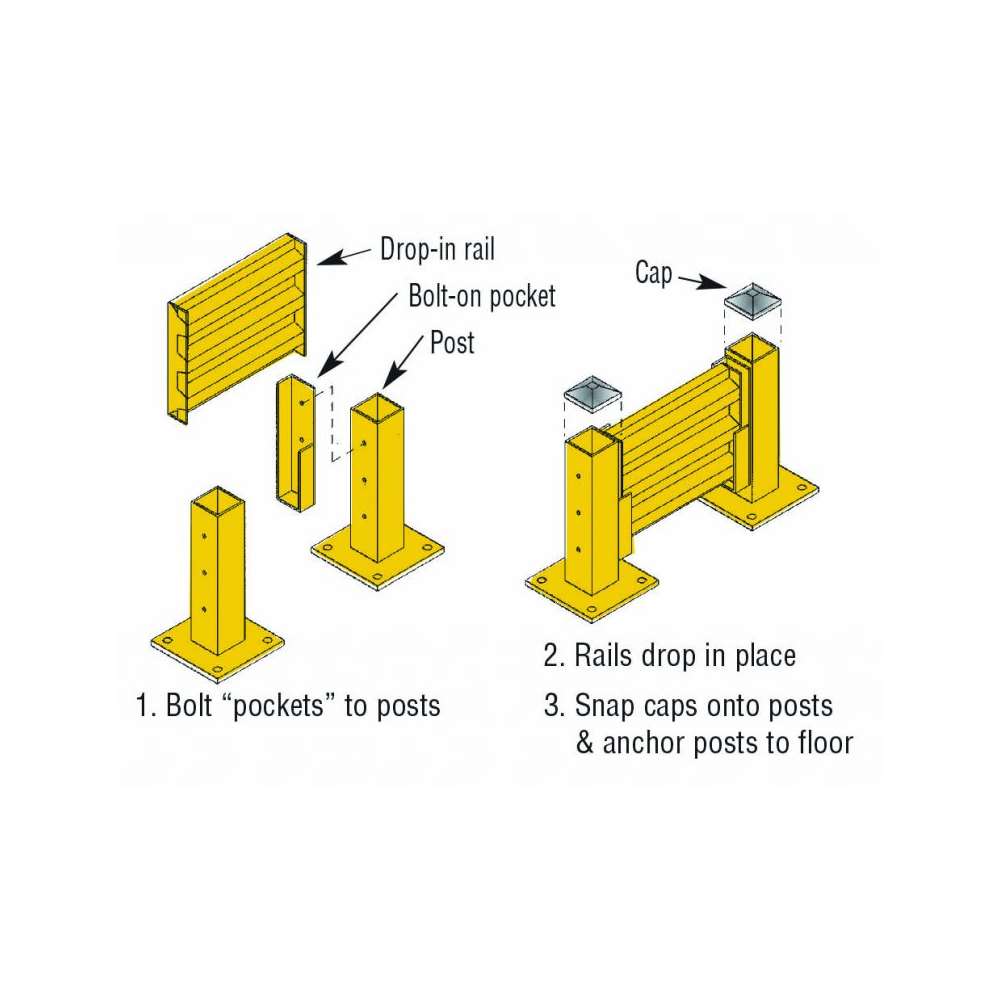

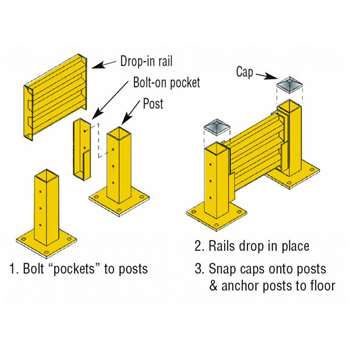

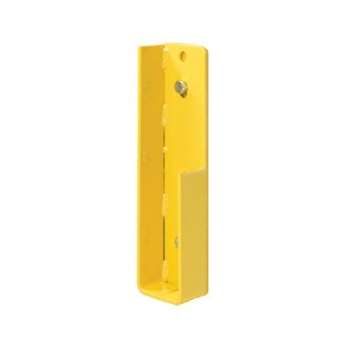

Rails - Lift-Out Rails including Left and Right Pockets to be Bolted to the Posts. Note: Lift-Out Pockets will Increase Post Center Lines by 1".
(NOTE: Standard Guard Rails cannot convert to lift-out rails. Lift-out rails are slightly shorter to accommodate the rails support pockets.)
|
Post Types -
(See Picture Chart)
|
- Standard center post
- Standard corner post
- Center post - end offset
- Center post - side offset
- Center post - standard offset
|
Anchors - 3/4" x 5-1/2"
Finish - Yellow
*Minimum Order on Guard Rail $200.00
SHIPS DIRECT FROM MANUFACTURER - F.O.B. ROME, GA
Lead Time: 1 Week
Vendor: Steel King
