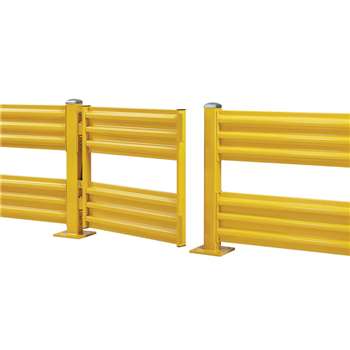

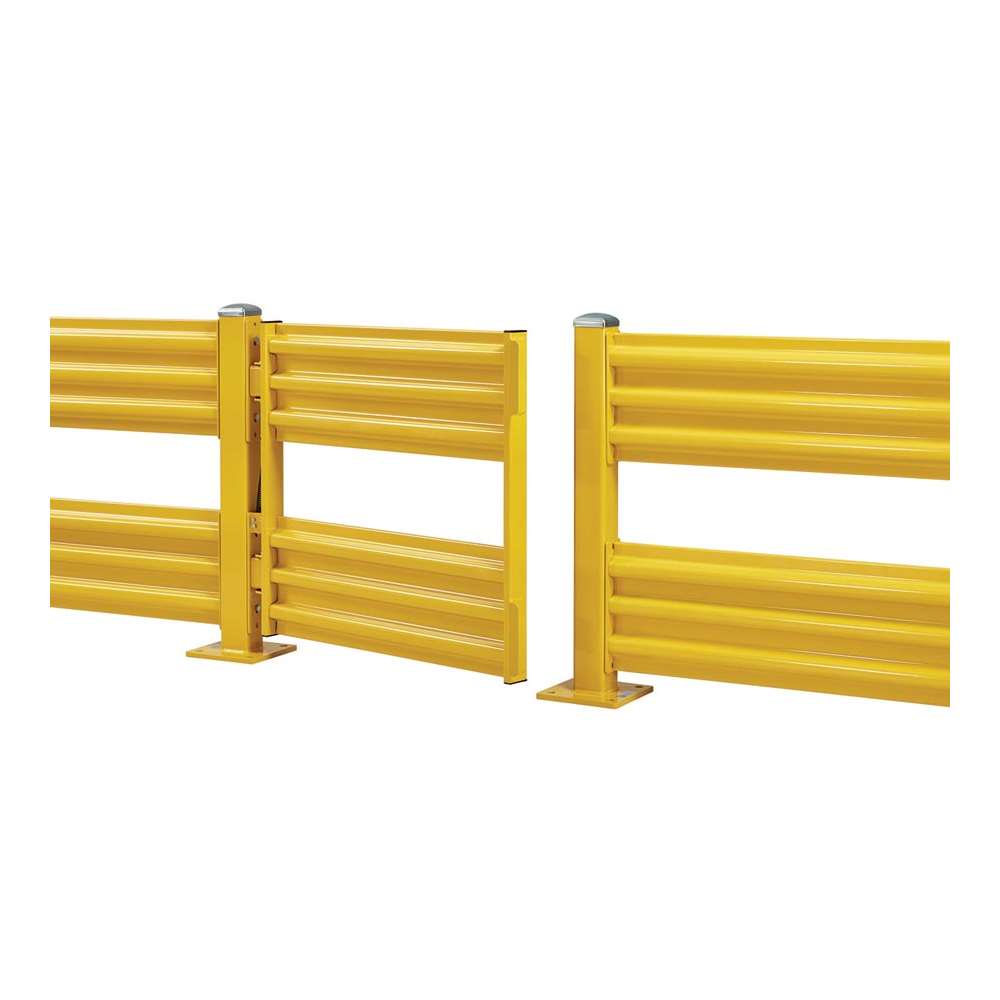

Steel Guard's self-closing safety gate adds versatility to the railing system.

Manufactured to the same standards as the railing, the gates can be ordered as part of a new installation or retrofitted into an existing Steel Guard system.

Heavy, 11-gauge corrugated steel rails are designed to fit a 48" post-to-post center line within a protective railing system.

The gate is shipped with the hinge assembly on one side of the gate and two gate stops on the opposite side. Hardware is included and the gates will bolt to existing Steel Guard posts. Easily installed without cutting, welding or drilling.

Changing the direction of the gate is as simple as removing a few bolts and flipping the gate in the direction needed. The gate opens to a 90 degree angle. Steel spring automatically closes gate after passage is complete.

STANDARD SPECIFICATIONS

Construction - Corrugated 11 Gauge Steel, 3 Ribs

Rail Dimensions - 14-1/2" high x 2-1/2" deep

Gate Dimensions - 38-1/2" high x 43-3/4"w

Finish - Tough, Durable, UV- and Scratch-Resistant Yellow Powder Coat

SHIPS DIRECT FROM MANUFACTURER - F.O.B. ROME, GA
