Step Beam

Note: Due to the increase in price of raw materials and the continually rising price of steel, we have been forced to re-evaluate our overall pricing strategy. Unfortunately, we are unable to guarantee pricing unless quoted or until orders have been confirmed by our sales department. Pricing on our website is subject to change without being updated online. You may still place an order and after receipt will be notified if there is a price change or please call in or email any RFQ's for the latest pricing.

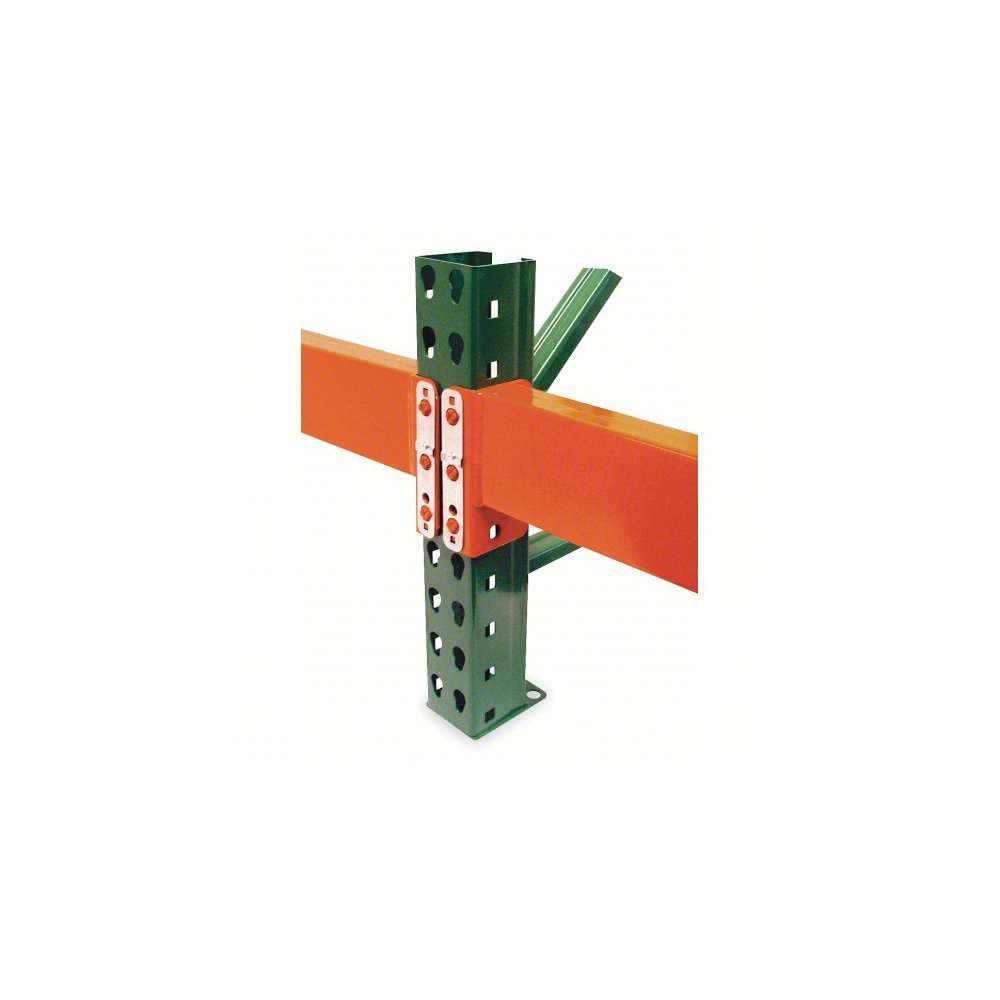

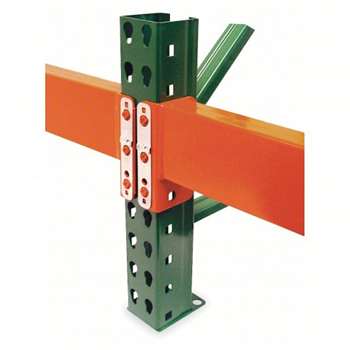

Husky's Invincible teardrop pattern sets the industry standard and accepts most teardrop style beams. Beams feature the patented Bowlock® safety clip which installs automatically to prevent dislodgement. Many standard sizes available to ship in 48 hours.

There are many accessories available for pallet rack. Visit our accessories page for our online options Pallet Rack Accessories. Other sizes and capacities available. If you have questions, require different sizes or need assistance with your order contact our Sales Department. Ask about our layout design and installation services. We also offer seismic engineering. Call toll free (800) 564-0152 or email info@amhboston.com

Uniform distribution of weight is assumed along the entire length of both beams
Capacities based on L/180 deflection criteria
Beams over 116” in length should be tied across the middle to prevent beam spreading
Beams over 90” in length that support loose deck (wood), should be tied across the middle to prevent beam spreading

STANDARD SPECIFICATIONS

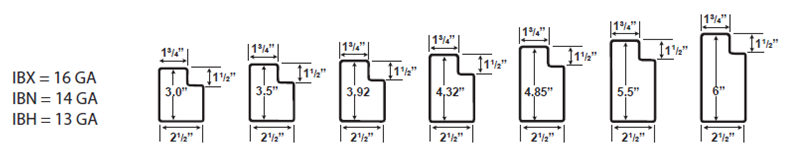

Construction - Beams are constructed of HSLA prime, U.S. made, high-strength steel. Load beams are roll formed with a 1-1/2" step along the top inside edge for holding load support components such as pallet supports or wire decks.

Capacity - Capacities listed below are based on maximum uniformly distributed loads (lbs. per pair of beams).

Finish - Orange, High quality polyurethane paint. Environmentally safe, does not contain lead.
