Standard Heavy Duty, 72"w x 37"d x 8'h, 21,500 Lbs Capacity

STANDARD SPECIFICATIONS

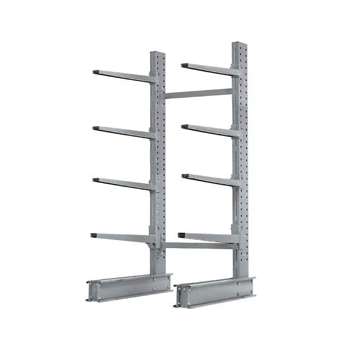

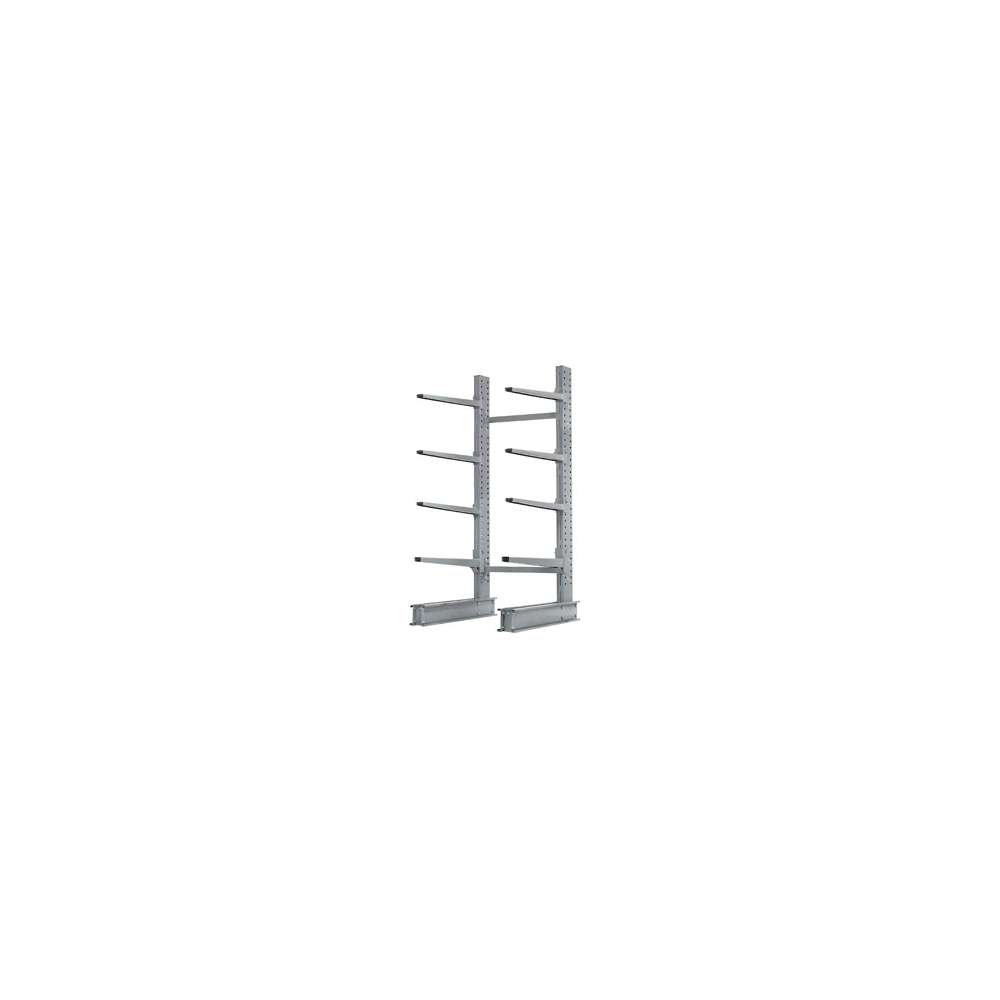

Starter Unit Includes - (2) Single Sided Uprights, Straight Arms and (1) Brace Set.

Uprights - (2) Single sided upright 8'h x 37" Base, 21,500 Lbs Capacity

Arms - (8) Straight Arms 24"L, 2,000 Lbs Capacity

Arms are completely adjustable on 3" centers up and down the full length of the uprights. Straight Arms have a minimum pitch of 3/8" per foot to compensate for deflection Arm capacities are based on an evenly distributed load. *Note in comment section at checkout if you would like to add Lips to the Straight Arms. Lips are not intended to bear any portion of the load.

Brace Sets - (1) 72"L, Set of 2.

Length of braces is measured from center of upright to center of upright.

Finish - Gray

F.O.B. FACTORY - OMAHA, NE
