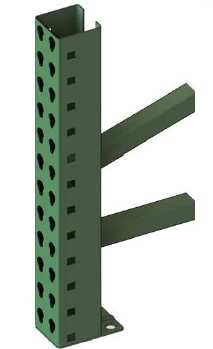

Upright Frame - Model IE

Interlake Selective Rack - the rack that sets the standards for the industry. Exceeds all RMI (Rack Manufacturer's Institute) standards.

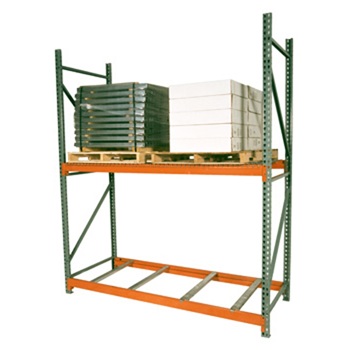

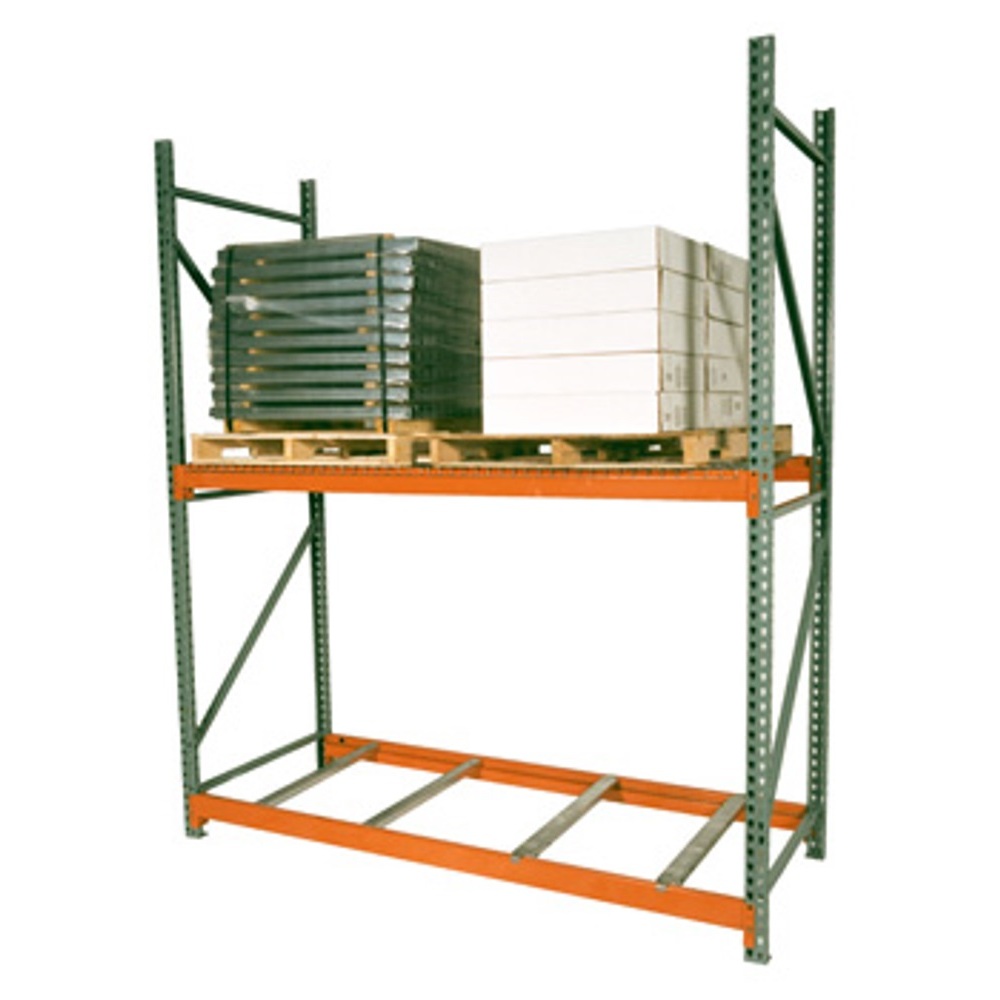

Roll-formed Selective Pallet Rack is the most popular and versatile racking in the industry. It offers the best solutions for warehouses with palletized products and a wide variety of goods.

Advantages

  • Direct access to each pallet

  • Simple stock management

  • Adaptable to any product volume, weight or size

Standard frames consist of two posts, horizontal and diagonal struts, and foot plates. Hole punches for beam insertion are placed along the post in 2" intervals. Posts are available in a variety of gauges, lengths, configurations for seismic zones and bracing patterns made to be more resistant to twisting, separating and axial loading.

There are many accessories available for pallet rack. Visit our accessories page for our online options Pallet Rack Accessories. Other sizes and capacities available. If you have questions, require different sizes or need assistance with your order contact our Sales Department. Ask about our layout design and installation services. We also offer seismic engineering. Call toll free (800) 564-0152 or email info@amhboston.com

Lead Time: 2-4 Days
Vendor: Interlake Mecalux

STANDARD SPECIFICATIONS

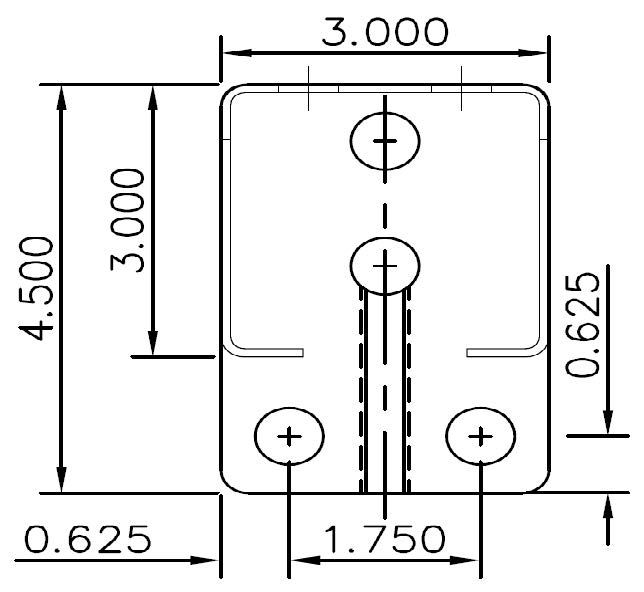

Construction - All welded steel, heavy duty horizontal and diagonal strut bracing. Welded footplates with lag holes for securely anchoring to concrete floor. Boltless beam-to-frame construction. Flat-sided wedge upright hole design (new style) causes the beam end plate to draw firmly against the column. Teardrop (old style) upright hole design, imitated by other manufacturers, but not equaled in cross-sectional strength and greater overall capacity.

Capacity - Capacities shown are:

  • Applicable for non-seismic use only

  • Based on uniformly distributed loads

  • Accurate for static loads only

Finish - Powder coated and baked enamel, Green.



 Welded Frame Capacity (lbs)
Model 025F 075F
Gauge 13 Ga. (0.090")
13 Ga. (0.090")
Maximum Unsupported Span (HbL)

 36" 23,400
42" 21,900 34,600
48" 19,300 30,600

 HbL = Height between Levels

  • Capacities are per the 2008 RMI and 2001 AISI specifications
  • Frame capacities shown include product load plus dead load (dead load = 2% of product load)
  • Maximum unsupported length is the maximum beam spacing or the distance between the floor and the top of the first beam (whichever is greater)
  • Capacities are only valid when used with Interlake Mecalux published beam sizes
  • Capacities are valid for static load only
  • These capacities assume that all component parts are: (1) Manufactured by Interlake Mecalux. (2) In good condition. (3) Properly installed.
SHIPS DIRECT FROM MANUFACTURER - F.O.B. IL, TX OR SC

SKU
Description
Item Price
Qty.
IE025F09636G
96"h x 36"d Upright Frame, 3" x 1-5/8" Column
$76.61
Qty:
IE025F09642G
96"h x 42"d Upright Frame, 3" x 1-5/8" Column
$81.24
Qty:
IE025F09648G
96"h x 48"d Upright Frame, 3" x 1-5/8" Column
$83.76
Qty:
IE025F12036G
120"h x 36"d Upright Frame, 3" x 1-5/8" Column
$85.96
Qty:
IE025F12042G
120"h x 42"d Upright Frame, 3" x 1-5/8" Column
$92.64
Qty:
IE025F12048G
120"h x 48"d Upright Frame, 3" x 1-5/8" Column
$94.21
Qty:
IE025F14436G
144"h x 36"d Upright Frame, 3" x 1-5/8" Column
$102.93
Qty:
IE025F14442G
144"h x 42"d Upright Frame, 3" x 1-5/8" Column
$110.09
Qty:
IE025F14448G
144"h x 48"d Upright Frame, 3" x 1-5/8" Column
$114.40
Qty:
IE025F19242G
192"h x 42"d Upright Frame, 3" x 1-5/8" Column
$145.04
Qty:
IE025F24042G
240"h x 42"d Upright Frame, 3" x 1-5/8" Column
$189.40
Qty:
IE075F14442G
144"h x 42"d Upright Frame, 3" x 3" Column
$135.61
Qty:
IE075F19242G
192"h x 42"d Upright Frame, 3" x 3" Column
$178.13
Qty:
IE075F21642G
216"h x 42"d Upright Frame, 3" x 3" Column
$193.91
Qty:
IE075F24042G
240"h x 42"d Upright Frame, 3" x 3" Column
$220.63
Qty:
