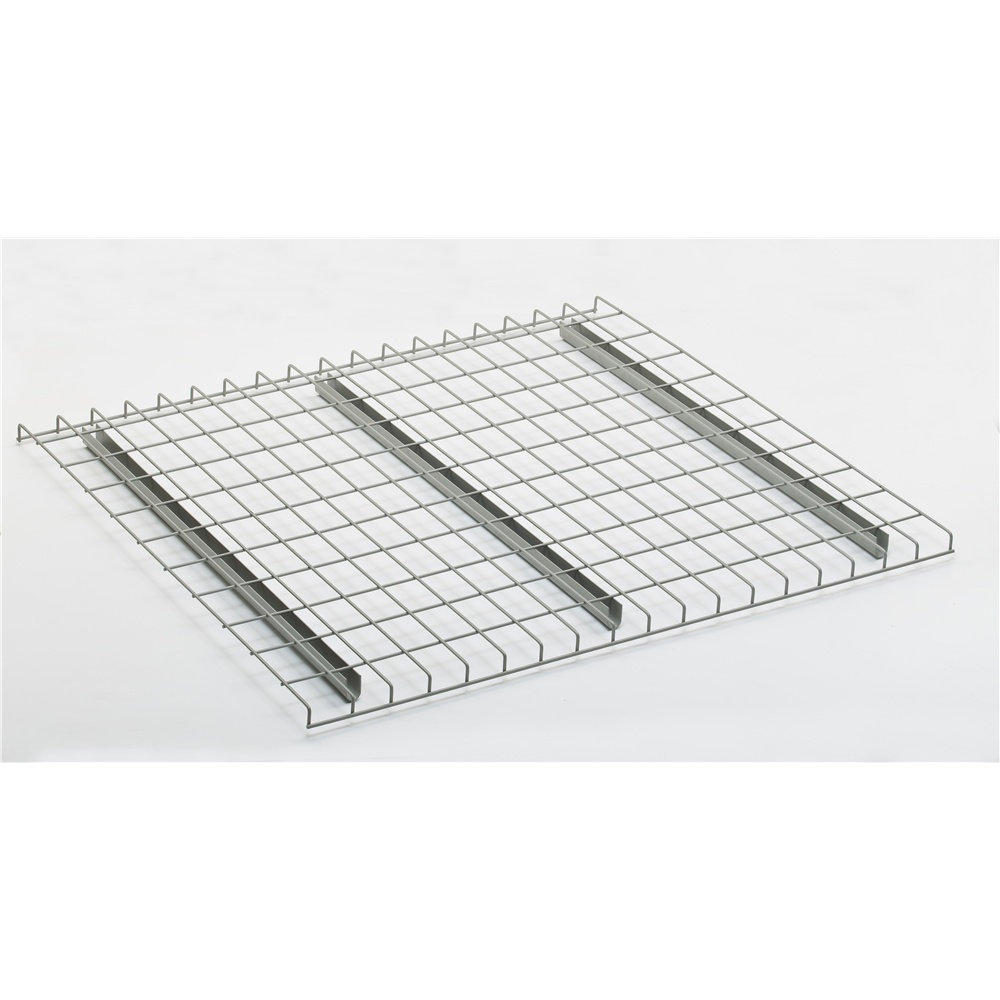

Wire Deck - Standard Channel
Wire Decking drops over top of beam and is held securely in place by waterfall edging. Available in sizes and capacities to meet any need. Wire Decking can be used for storage of larger non-palletized items, as well as safety decking for palletized tunnel positions.Wire Decking gives you the flexibility to store cartons, drums, multiple pallet sizes and/or a variety of other products.
Ideal decking for use where pallet positions require both decking and sprinkler access. Improves fire safety by enhancing the performance of your overhead sprinkler system. Protects employees and products. Improves inventory visibility and brightens your facility. Wire Decking is self-cleaning and maintenance free.
Designed and manufactured in conformance with ANSI standard MH26.2 for loads that are static and uniformly distributed over the entire surface of the rack deck and within the allowable load capacity rating. Users shall not permit welded-wire rack decking to be used as a walkway or platform for personnel. Loads should be placed onto decking rather than dropped or pushed.
This deck is available is several finishes (not for purchase online) such as; powder coated, hot-dipped galvanized, pre-galvanized and electro-zinc plated. If you have questions, require a different size or finish, or need assistance with your order contact our Sales Department. Call toll free (800) 564-0152 or email info@amhboston.com
Wire Deck Beam Fitting Chart
|
Fits Beam Lengths
|
Use This Deck Width
|
6 Ft - 72"
|
(2) 34"
|
7 Ft - 84"
|
(1) 34" & (1) 46"
|
7 Ft 8" - 92"
|
(2) 46"
|
8 Ft - 96"
|
(2) 46"
|
8 Ft 6" - 102"
|
(1) 46" & (1) 52"
|
9 Ft - 108"
|
(2) 52" or (3) 34"
|
10 Ft - 120"
|
(2) 58" or (2) 34" & (1) 46"
|
11 Ft - 132"
|
(1) 34" & (2) 46"
|
12 Ft - 144"
|
(3) 46"
|
STANDARD SPECIFICATIONS
Construction - Steel wire mesh.
Wire Mesh Pattern - 2" x 4" and 2.5" x 4" (see chart)
Wire Mesh Gauge - 5 Ga, 6 Ga, 7 Ga (see chart)
Channel - Standard U-Channel; designed to accommodate standard 1-1/2" or 1-5/8" step beams.
Channel Gauge - 13 Ga, 14 Ga, 16 Ga (see chart)
Finish - Baked gray enamel.
Part No.
|
Dimensions
|
Capacity |
Mesh Pattern
|
Wire Gauge
|
Channel Gauge
|
| D2446-AA-3B1 |
24"d x 46"w
|
3,500 lbs.
|
2.5 " x 4"
|
6 Ga
|
16 Ga
|
| D3046-AA-3B1 |
30"d x 46"w
|
3,200 lbs.
|
2.5" x 4"
|
6 Ga
|
16 Ga
|
| D3634-AA-3B1 |
36"d x 34"w
|
2,600 lbs
|
2.5" x 4"
|
6 Ga
|
16 Ga
|
| D3646-AA-3B1 |
36"d x 46"w |
2,700 lbs
|
2.5" x 4"
|
6 Ga
|
16 Ga
|
| D3646-BB-3B1 |
36"d x 46"w
|
3,200 lbs
|
2" x 4"
|
5 Ga
|
16 Ga
|
| D3652-AA-3B1 |
36"d x 52"w
|
2,700 lbs
|
2.5" x 4"
|
6 Ga
|
16 Ga
|
| D3658-AA-3B1 |
36"d x 58"w
|
2,700 lbs
|
2.5" x 4"
|
6 Ga
|
16 Ga
|
| D4234-AA-3A1 |
42"d x 34"w
|
2,550 lbs
|
2.5" x 4"
|
6 Ga
|
14 Ga
|
| D4246-CA-3B1 |
42"d x 46"w
|
2,200 lbs
|
2.5" x 4"
|
7 Ga
|
16 Ga
|
| D4246-AA-3A1 |
42"d x 46"w
|
2,700 lbs
|
2.5" x 4" |
6 Ga
|
14 Ga
|
| D4246-BB-3A1 |
42"d x 46"w
|
3,000 lbs
|
2" x 4"
|
5 Ga
|
14 Ga
|
| D4246-BB-4A1 |
42"d x 46"w
|
3,600 lbs
|
2" x 4"
|
5 Ga
|
14 Ga
|
| D4252-AA-3B1 |
42"d x 52"w
|
2,250 lbs
|
2.5" x 4"
|
6 Ga
|
16 Ga
|
| D4252-AA-3A1 |
42"d x 52"w
|
2,700 lbs
|
2.5" x 4"
|
6 Ga
|
14 Ga
|
| D4252-BB-4A1 |
42"d x 52"w
|
3,650 lbs
|
2" x 4"
|
5 Ga
|
14 Ga
|
| D4258-AA-3A1 |
42"d x 58"w
|
2,750 lbs
|
2.5" x 4"
|
6 Ga
|
14 Ga
|
| D4446-AA-3A1 |
44"d x 46"w
|
2,550 lbs
|
2.5" x 4"
|
6 Ga
|
14 Ga
|
| D4452-AA-3A1 |
44"d x 52"w
|
2,750 lbs
|
2.5" x 4"
|
6 Ga
|
14 Ga
|
| D4834-AA-3A1 |
48"d x 34"w
|
2,200 lbs
|
2.5" x 4"
|
6 Ga
|
14 Ga
|
| D4846-AA-3B1 |
48"d x 46"w
|
1,900 lbs
|
2.5" x 4"
|
6 Ga
|
16 Ga
|
| D4846-AA-3C1 |
48"d x 46"w
|
2,500 lbs
|
2.5" x 4"
|
6 Ga
|
13 Ga
|
| D4846-BB-4A1 |
48"d x 46"w
|
3,100 lbs
|
2" x 4"
|
5 Ga
|
14 Ga
|
| D4852-BA-3A1 |
48"d x 52"w
|
2,500 lbs
|
2.5" x 4"
|
5 Ga
|
14 Ga
|
| D4858-BA-3A1 |
48"d x 58"w
|
2,500 lbs
|
2.5" x 4"
|
5 Ga
|
14 Ga
|
| D6046-BA-4A1 |
60"d x 46"w
|
2,300 lbs
|
2.5" x 4"
|
5 Ga
|
14 Ga
|
SHIPS DIRECT FROM MANUFACTURER - F.O.B. FRANKFORT, KY
Lead Time: 2-4 Days
Vendor: NWP
