Step Beam - Non Slotted

Interlake Selective Rack - the rack that sets the standards for the industry. Exceeds all RMI (Rack Manufacturer's Institute) standards.

Roll-formed Selective Pallet Rack is the most popular and versatile racking in the industry. It offers the best solutions for warehouses with palletized products and a wide variety of goods.

Advantages

  • Direct access to each pallet

  • Simple stock management

  • Adaptable to any product volume, weight or size

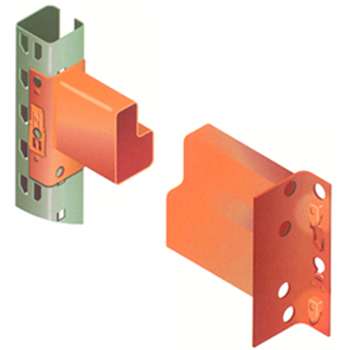

One step beam installation, seats and locks automatically, without sliding parts or additional hardware. Damage and tamper resistant patented locking system guards against accidental beam displacement and exceeds the RMI requirements for upward force.

There are many accessories available for pallet rack. Visit our accessories page for our online options Pallet Rack Accessories. Other sizes and capacities available. If you have questions, require different sizes or need assistance with your order contact our Sales Department. Ask about our layout design and installation services. We also offer seismic engineering. Call toll free (800) 564-0152 or email info@amhboston.com

Lead Time: 2-4 Days
Vendor: Interlake Mecalux

STANDARD SPECIFICATIONS

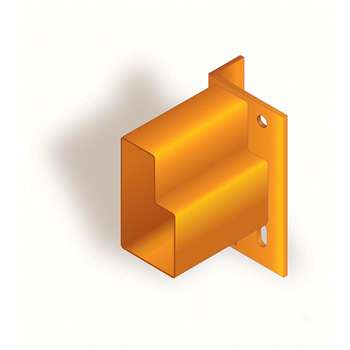

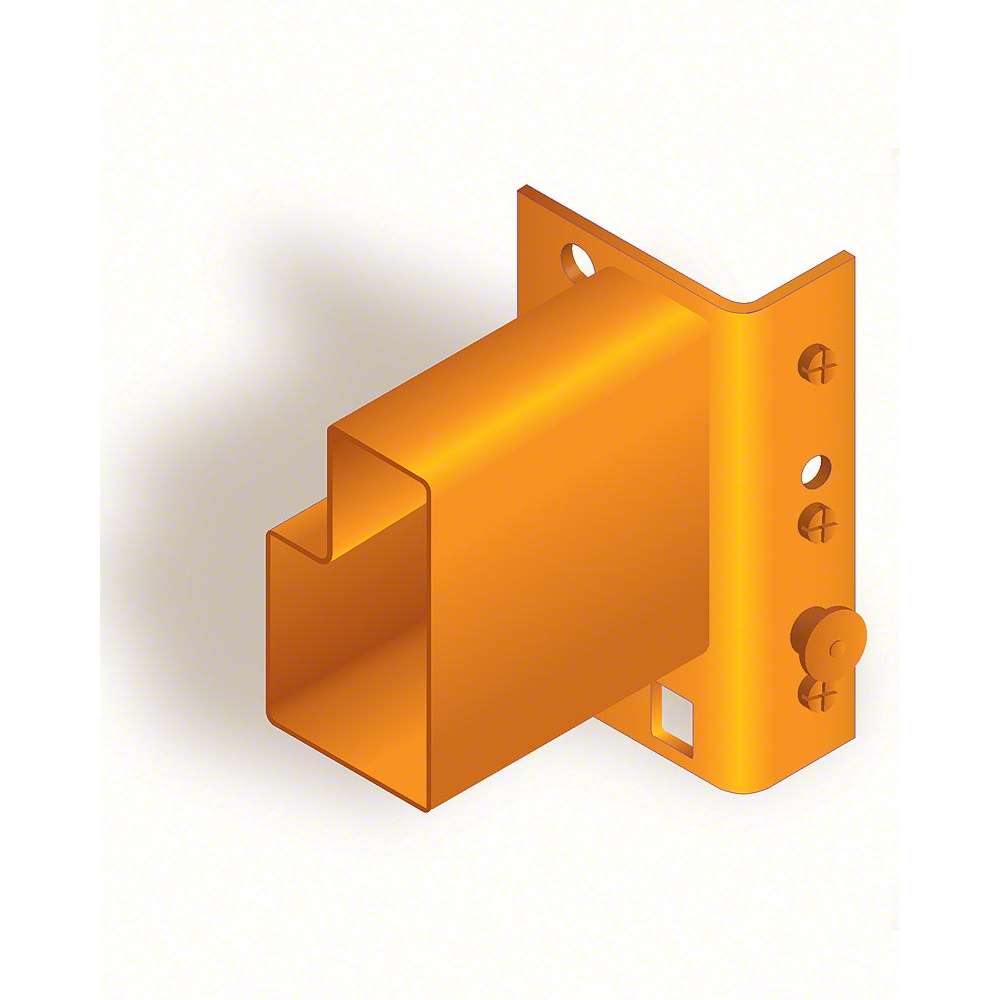

Construction - All welded steel. Teardrop style. Boltless beam-to-frame construction. Load beams are roll formed with a 1-5/8" step along the top inside edge for holding load support components such as pallet supports or wire decks.

Capacity - Capacities listed below are based on maximum uniformly distributed loads (lbs. per pair of beams).

Finish - Powder coated and baked enamel, Orange.

 Unslotted Step Beam Capacity (lbs per pair)
Span
27E 36E 40E 45E 50E 59E 65E
48" 5,620
96"
  4,165 5,340 5,930 6,810
108"     4,030 5,350 6,125
120"       4,585   7,335
144"            6,215 7,075
  • Capacities are per the 2008 RMI and 2001 AISI specifications
  • Interlake Mecalux beams over 126"L require bracing to prevent buckling
  • Beams longer than 90" that support decking must be tied together to prevent spreading (crossbar)
  • Loading to be uniformly distributed over the length on the beam
  • Values shown reflect the capacity of the beams based on the lesser of its strength in bending, or L/180 deflection criteria
  • Load capacities are for uniformly distributed product load plus dead load per pair of beams (dead load = weight of beams)
  • Capacities are valid for static load only
  • These capacities assume that all component parts are: (1) Manufactured by Interlake Mecalux. (2) In good condition. (3) Properly installed.

SHIPS DIRECT FROM MANUFACTURER - F.O.B. IL, TX OR SC


SKU
Description
Item Price
Qty.
IK27E-48
48"L Step Beam, 2-3/4" Face; 5,620# Capacity Per Pair
$17.21
Qty:
IK36E-96
96"L Step Beam, 3-21/32" Face; 4,165# Capacity Per Pair
$32.99
Qty:
IK40E-96
96"L Step Beam, 4" Face; 5,340# Capacity Per Pair
$33.93
Qty:
IK45E-96
96"L Step Beam, 4-1/2" Face; 5,930# Capacity Per Pair
$36.27
Qty:
IK50E-96
96"L Step Beam, 5" Face; 6,810# Capacity Per Pair
$38.57
Qty:
IK40E-108
108"L Step Beam, 4" Face; 4,030# Capacity Per Pair
$38.53
Qty:
IK45E-108
108"L Step Beam, 4-1/2" Face; 5,350# Capacity Per Pair
$40.29
Qty:
IK50E-108
108"L Step Beam, 5" Face; 6,125# Capacity Per Pair
$42.87
Qty:
IK45E-120
120"L Step Beam, 4-1/2" Face; 4,585# Capacity Per Pair
$44.30
Qty:
IK59E-120
120"L Step Beam, 5-15/16" Face; 7,335# Capacity Per Pair
$57.50
Qty:
IK59E-144
144"L Step Beam, 5-15/16" Face; 6,215# Capacity Per Pair
$67.89
Qty:
IK65E-144
144"L Step Beam, 6-9/16" Face; 7,075# Capacity Per Pair
$72.47
Qty:
